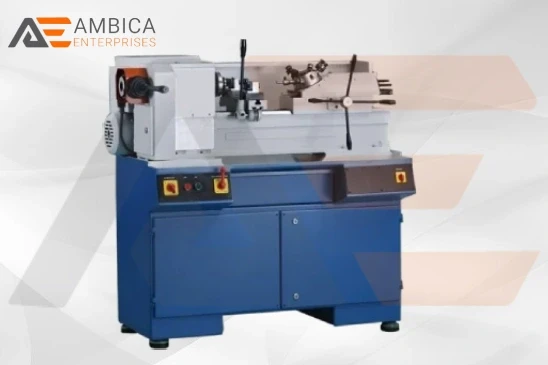

Capstan Lathe

Introduction of Capstan Lathe Machine

A capstan lathe machine is a type of lathe machine that builds on the functions of an engine lathe machine. While an engine lathe performs operations one at a time, the capstan lathe can handle multiple operations simultaneously, speeding up the machining process. This machine is considered light-duty and is best suited for small workpieces. It similarities with the turret lathe in design & functionality.

The capstan lathe machine is versatile and highly efficient and is utilized extensively in the field of manufacturing and machining. Known for its rapid tool-changing capabilities & adaptability, the Capstan lathe is specifically designed to handle repetitive machining processes, making it an excellent choice for mass production. Unlike other traditional lathe types, the Capstan lathe machine incorporates a turret mechanism, which allows operators to use multiple cutting tools without manually resetting or changing each tool. This greatly reduces downtime & increases productivity, especially for jobs involving multiple machining steps.

The capstan lathe machine is a technical kind of lathe equipped with a turret, or rotating head, that holds several cutting tools simultaneously. This machine authorizes quick & automatic changes between tools, facilitating a seamless machining process. Capstan lathes are distinct from standard engine lathes, as they are designed to manage high-volume, repeatable jobs with reduced labor and time investments. Capstan lathes are widely utilized in industries that demand precise, repetitive, & mass production of small & medium-sized components.

Components of Capstan Lathe Machine

Understanding the main components of the Capstan lathe machine is elementary for grasping how it operates. Some of the critical components include:

• Turret Head: The turret head is a prominent characteristic of the Capstan lathe, allowing the machine to hold and switch between multiple tools. Mounted on the saddle, the turret head typically holds 4-6 tools, allowing the machine to execute distinct machining procedures without halting.
• Headstock: The headstock contains the spindle and driving mechanism, which powers the rotation of the workpiece. It is accountable for delivering the necessary speed and torque for different machining tasks.
• Saddle: The saddle contains the turret head and permits it to move longitudinally along the machine’s bed. This movement facilitates the approach of the tools toward the rotating jobpiece.
• Tailstock: The tailstock delivers further support for the workpiece, especially for longer components. It may also house tools like drill bits for distinct machining tasks.
• Carriage: The carriage is utilized to hold the cross slide & turret in place. It ensures that these components can drive smoothly to align tools with the jobpiece.

Capstan Lathe Machine Working

In a capstan lathe, the hexagonal tool holder can hold up to six various tools. First, the workpiece, which needs shaping, is secured in a chuck. This chuck, which could have either three or four jaws, is attached to a spindle, allowing it to rotate with the workpiece.

The hexagonal tool head, which has six faces for different tools, is then driven towards the spinning workpiece by shifting the saddle. To switch between tools, the hexagonal head could be rotated, positioning the mandated tool towards the workpiece.

Once aligned, the tool advances to make a connection with the workpiece, allowing the procedure to be performed. After completing this operation, the ram drives back, and the turret automatically rotates, positioning the next tool in line to continue machining without interruption.

Capstan Lathe Machine Features

Capstan lathes boast several unique features and specifications that make them stand out:

• Multiple Tool Holding Capacity: Capstan lathes come with a turret that can hold numerous cutting tools, whichever could be rotated to switch between tools quickly and efficiently.
• High-Speed Production: With the reduced requirement for manual intervention, Capstan lathes enhance speed and productivity for batch production.
• Precision and Repeatability: Capstan lathes ensure accuracy across multiple operations and provide consistent results, essential for mass production.
• Ease of Operation: They are relatively user-friendly compared to conventional lathes and are commonly performed by semi-skilled workers in mass-production setups.

Capstan Lathe Machine Manufacturer in India

We are the leading capstan lathe machine manufacturer in India and capstan lathe machine supplier all over the world. Compared to others our capstan lathe machine price is low. India's capstan lathe machine price varies based on the type and specifications. In addition to capstan lathe machines, we offer a variety of other lathe machines, including engine lathe machines, turret lathe machines, belt-drive lathe machines, bench top lathe machines, motor-driven lathe machines, speed lathe machines, geared-head lathe machines, mini lathe machines, CNC turning machine, wood-turning lathe machines, and also provide abrasive blasting machine, sand blasting machine, grit blasting machine, granite engraving machine, laser rust cleaning machine.
