Center Lathe Machine

40K-5Lakh
Get Urgent Quote
Call Now

Product

Center Lathe Machine

Swing Over Bed

300-1,500 mm

Swing Over Cross Slide

150-800 mm

Distance Between Centers

500-6,000 mm

Spindle Bore Diameter

20-150 mm

Spindle Speed Range

40-2,500 RPM

Bed Width

200-500 mm

Tailstock Quill Diameter

50-200 mm

Tailstock Travel

100-300 mm

Brand

Ambica Enterprises

Country

India

Delivery Time

1-2 Weeks

Packaging Details

Bubble Wrapping & Wood Box

Transport Type

Land/Sea/Air Transport

  • Turning: Shaping cylindrical components by rotating them against a cutting tool.

  • Facing: Flattening the ends of the job piece.

  • Thread Cutting: Creating screw threads on rods & pipes.

  • Drilling & Boring: Making or enlarging holes.

  • Knurling: Adding textured patterns to cylindrical surfaces for grip.

Introduction of Center Lathe Machine

center lathe machine, also known simply as a lathe, is an essential tool in the metalworking and manufacturing industries. It is widely utilized for shaping, cutting, & finishing metal or wood components by rotating a job piece against a cutting tool. This versatile equipment is integral to precision engineering & mass production.

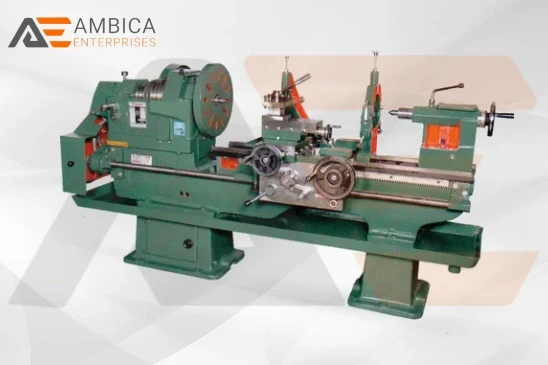

The Centre Lathe is utilized to create cylindrical shapes from an assortment of materials, including steel and plastic. Many of the elements certain assemble an engine have been fabricated on lathes. These could be manual lathes or computer-controlled lathes (CNC turning lathe machines) certain have been configured to execute a certain task. The image below shows a fundamental manual center lathe. This sort of lathe is regulated by a human rotating the assorted handles on the top & cross slides to create a product and part.

Center Lathe Machine Working

A center lathe's headstock could be opened to reveal an array of gears. These gears are occasionally substituted to adjust the velocity of rotation of the chuck. The lathe must be turned off prior to opening, while if the door is opened but the machine is functioning, the motor will shut down automatically (a safety feature). The speed of rotation of the chuck is typically set utilizing the gear levers. These are typically located on top of the headstock or along the front & permit an assortment of speeds.

A center lathe machine functions by securing the job piece between a headstock & a tailstock while a cutting tool moves along the material to extract excess material. These machines are renowned for their adaptability & efficiency in handling cylindrical & symmetrical parts.

A center lathe's primary duty is to release metal from work to achieve the desired form and size. The job piece is securely & rigidly kept in the chuck or betwixt centers of the lathe machine before standing turned against a single-point cutting tool, whichever extracts metal from the job-piece as chips. The engine lathe is the numerous essential & simple kind of lathe. Its name emanated from the earlier lathes, whichever were powered by engines. Aside from the easy turning process mentioned above, a lathe could be utilized for an assortment of additional operations, including drilling, reaming, boring, taper turning, knurling, screw thread cutting, & grinding.

Types of Center Lathe Machine

  • Manual Center Lathe Machine: Operated by hand, ideal for single-piece or low-volume production.
  • CNC Center Lathe Machine: Computer-controlled, suitable for complex and high-volume production.
  • Toolroom Lathe Machine: Precision lathes for fine detail work, often used in prototyping.
  • Engine Lathe Machine: Designed for general-purpose turning operations.

Components of Center Lathe Machine

  • Headstock: Houses the spindle & frequently includes a gear mechanism for controlling rotational speed.
  • Tailstock: Delivers further support for long job pieces.
  • Carriage: Forces the cutting tool along the job piece, permitting precision shaping.
  • Chuck: Holds the job piece securely in place.
  • Bed: The rigid bottom that supports the additional components.
  • Tool Post: Mounts the cutting tools, permitting easy adjustments.
  • Leadscrew & Feed Rod: Enable controlled & automatic directions of the tool.

Advantages of a Center Lathe Machine

  • Versatility: Capable of handling a broad scope of operations.
  • Precision: Delivers heightened accuracy, crucial for engineering applications.
  • Durability: Built to last, with robust construction.
  • Cost-Effectiveness: Affordable option for small-scale production and repair jobs.
  • Ease of Maintenance: Simpler design compared to more complex CNC machines.

Center Lathe Machine Manufacturers

We are one of the best center lathe machine manufacturers in India and also the center lathe machine suppliers all over the world. Compared to others our center lathe machine price is low. India's center lathe machine price varies based on the type and specifications. We provide a wide range of lathe machines, including engine lathe machines, glass lathe machines, center lathe machines, motor-driven lathe machines, vertical turning lathe machines, metal lathe machines, mini lathe machines, CNC turning machines, and wood-turning lathe machines. Additionally, we offer abrasive blasting machines, automatic sand blasting machines, wet blasting cabinets, sand blasting cabinets, wheel blasting machines, stone shot blasting machines, grit blasting machines, wet blasting machines, granite engraving machines, laser rust cleaning machine, thermal spray gun, metal spray gun, and abrasive media, etc.
