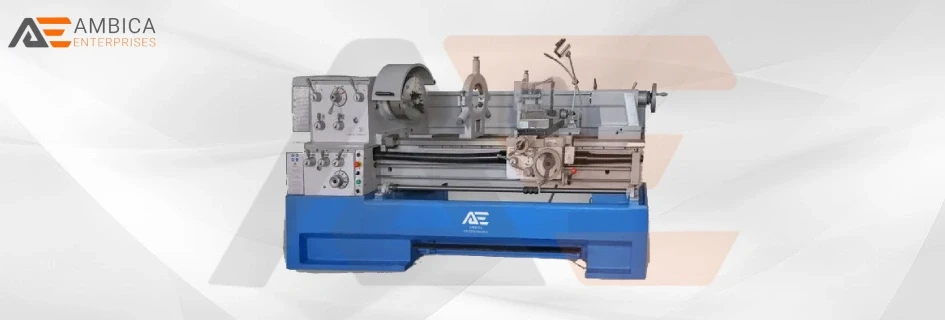

What is an Engine Lathe?
An engine lathe machine is one of the most universal & widely utilized kinds of lathes in the machining world. Understood as the "workhorse" of the metalworking industry, it is mostly utilized to execute assorted machining processes such as turning, facing, threading, & drilling on cylindrical job pieces. Engine lathe machine is distinguished by its simple design, manual operation, & adaptability, assembling it appropriate for beginners & specialists alike.
Components of an Engine Lathe Machine
To thoroughly apprehend how an engine lathe machine works, it is important to introduce yourself with its primary elements:
- Headstock: The headstock is found on the left side of the lathe machine. It accommodates the spindle, whichever holds & rotates the job piece. The headstock even includes gears & pulleys certain authority the speed & torque of the spindle, permitting for adjustments established on the variety of material existing machined.
- Tailstock: Positioned opposite the headstock, the tailstock controls the dissimilar end of the job piece. It is adaptable along the bed & could contain tools like drill bits and centers for further procedures like drilling or holding long job pieces.
- Lathe Bed: The bed is the underside of the engine lathe & delivers support for all additional elements. It is constructed of tough materials alike cast iron to assure stability & precision during machining. The bed even features guideways certain authorize the carriage & tailstock to drive smoothly.
- Carriage: The carriage conducts along the bed & holds the cutting tool in place. It consists of several elements, including the saddle, cross-slide, compound rest, & tool post. These components permit thorough control of the cutting tool’s position & movement.
- Chuck: The chuck is attached to the spindle & is employed to securely maintain the job-piece in place. Distinct varieties of chucks incorporate 3-jaw self-centering chucks & 4-jaw separate chucks, hanging on the shape & size of the job piece.
- Lead Screw and Feed Rod: The lead screw is employed for threading operations, although the spread rod facilitates the mechanical motion of the carriage during turning procedures. Both elements assure constant material removal & precision.
- Apron: The apron is affixed to the front of the carriage & contains controls for the spread mechanism or additional operating levers.
How Does an Engine Lathe Machine Work?
An engine lathe machine functions on an easy principle: the job piece turns against a standing and pushing cutting tool. Here is a step-by-step summary of how it works:
- Securing the Workpiece: The job piece is clamped into the chuck and secured betwixt the centers of the headstock & tailstock.
- Adjusting the Speed: The operator selects the suitable spindle speed founded on the material kind & preferred procedure.
- Positioning the Cutting Tool: The cutting tool is ascended on the tool post & arranged nearest to the job-piece.
- Starting the Machine: The spindle begins to rotate, & the operator provides the cutting tool into the job-piece manually & automatically.
- Performing Machining Operations: The operator carries out procedures like turning, facing, & threading to shape the job-piece according to specifications.
Types of Operations Performed on an Engine Lathe Machine
The versatility of the engine lathe machine authorizes it to execute a broad scope of procedures, including:
- Turning: Turning is the most standard procedure executed on an engine lathe. It concerns releasing material from the exterior diameter of the job piece to accomplish an expected size & shape.
- Facing: Facing is utilized to assemble a flat exterior at the end of the job-piece. This operation is typically the first step to ensure the job-piece is squared & ready for additional machining.
- Thread Cutting: Thread cutting is the operation of assembling interior or exterior threads on a jobpiece. This procedure mandates accurate control of the lead screw & spread instruments.
- Drilling and Boring: Drilling makes holes in the job piece, while boring enlarges existing holes to precise dimensions. Both processes could be achieved utilizing tools mounted in the tailstock.
- Knurling: Knurling delivers a textured custom on the exterior of the job piece, frequently for improved grip or decorative purposes.
- Parting: Parting concerns cutting the job piece to isolate it into two elements. This procedure is typically employed to finish a machined element.
- Grooving: Grooving constructs limited channels & craters in the jobpiece. It is frequently utilized for preparing elements for congregation or fitting.
Applications of an Engine Lathe Machine
The engine lathe machine is widely utilized in assorted industriousness due to its versatility & efficiency. Some standard applications include:
- Manufacturing: Engine lathes are utilized to assemble machine elements, automotive elements, & tools with heightened accuracy.
- Prototyping: In engineering & design, engine lathes are invaluable for assembling prototypes & testing new concepts.
- Repair and Maintenance: Machine shops utilize engine lathes to improve & refurbish worn-out parts, extending the lifespan of equipment.
- Education and Training: Engine lathes are generally encountered in technical schools & workshops, wherever they operate as training tools for aspiring mechanics.
Advantages of an Engine Lathe Machine
Utilizing an engine lathe machine offers several benefits, including:
- Versatility: Engine lathes could handle a broad scope of materials & operations, from straightforward turning to difficult threading.
- Precision: The machine’s procedure assures accurate & constant outcomes, constructing it definitive for heightened precision work.
- Ease of Use: Engine lathes are relatively straightforward to perform, even for beginners, thanks to their straightforward controls & layout.
- Durability: Built with robust materials, engine lathes are prepared to resist serious usage & last for years.
- Cost-Effectiveness: Compared to advanced CNC machines, engine lathes are additionally reasonable & cost-effective for small-scale operations.
